McLeod Precision
Mini ARCA Rail
Mini ARCA Rail
Couldn't load pickup availability
Small, low profile and unobtrusive ARCA rail. Common use would be a hunting rifle or other setup that you want to ARCA attach to your tripod or bi-pod. Can also be used for other gear, just get creative.
Less that 1/4" thick (.2465") and less that 3" long (.290). 1.5" wide.
Exactly 1 OZ weight.
Built in "end stop" that provides a positive stop as you slide into a tripod mount.
Mount with 10-32 or 10-24 screws into MLOK slots or option in for the thread inserts in 10-32 size. When you order, select your hardware choice.
6061-T6 aluminum machined in my shop here in northern Arizona. Cerakote Stealth Grey finish which goes great with any color chassis or stock.
Notes: Thread inserts require a I size drill (.272) and 5/16-18 TAP. EZ-LOK 319-332 is what I provide in case you want to look it up.
Price includes shipping.

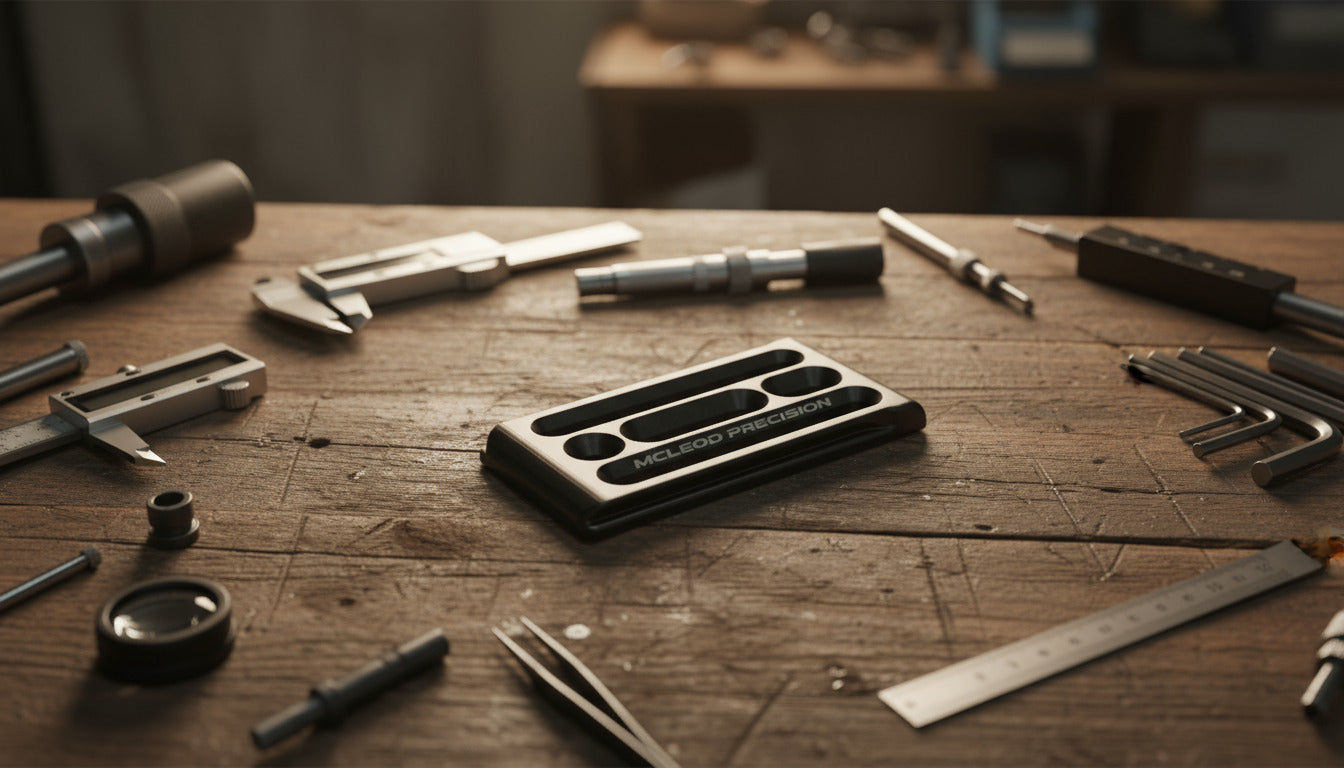

![Picture ot the mini arca which is carbon grey and 3" long](http://mcleodprecision.com/cdn/shop/files/mini_arca_top_small_7f7a3ec1-6454-49dc-a377-28fa71ec3dfa.jpg?v=1712337883&width=1445)
![Picture ot the mini arca which is carbon grey and 3" long](http://mcleodprecision.com/cdn/shop/files/mini_arca-edge_small_600354f5-4bd1-4c20-85ee-eeca5fa6e400.jpg?v=1712337883&width=1445)
![Picture ot the mini arca which is carbon grey and 3" long](http://mcleodprecision.com/cdn/shop/files/mini_arca_bottom_small_d82c0e52-f2bc-4a71-8bc7-54050f435271.jpg?v=1712337883&width=1445)
![Picture ot the mini arca which is carbon grey and 3" long](http://mcleodprecision.com/cdn/shop/files/mini_arca_top_ruler_small_08121fd4-57b4-40bc-8252-ce8c09074775.jpg?v=1712337883&width=1445)

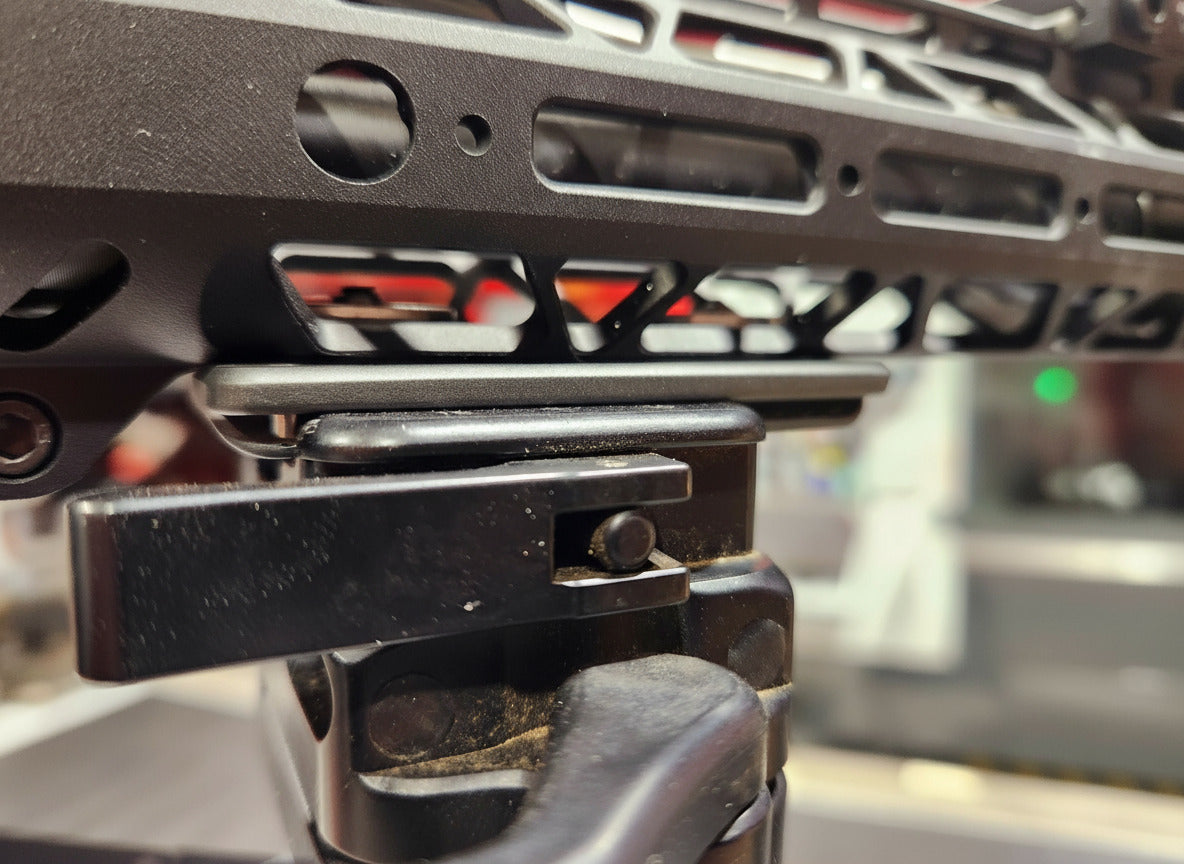

![Mini Arca rail mounted to rifle and clamped into a tripod picture](http://mcleodprecision.com/cdn/shop/files/1000001045.jpg?v=1712337883&width=1445)
