McLeod Precision

Optics Bridge

Optics Bridge

$89.00 USD
$89.00 USD
Sale Sold out

Clamp the Optics Bridge into your ball head and attach your optics, kestrel, range finder and wind flag.

Provides countersunk holes for common 1/4"-20 camera style screws to attach directly to those type of mounts on your devices.

10-32 tapped holes set on a 1.1" ARMS17 standard pattern throughout, allowing attachments of clamps anywhere, top or bottom.

Full length, double sided ARCA rail.  "Rotator" ARCA block included that allows a 90 degree presentation to your ball head.  Very important for ball heads like the anvil-30 so the operating handle stays in the proper orientation.

The "Rotator" can be moved anywhere on the bottom of the rail for offset if you prefer all of your accessories on one side of your optics.

Made in the USA from 6061-T6 aluminum.

11.9" Long X .4" Thick X 1.5" wide at 8.8 oz weight.  Extremely rigid.

Optics Bridge includes:  1 Rail, 1 Rotator, 1 camera screw (1/4-20), (1) 1/4-20x.375 cap screw (2) 10-32x.5 countersunk screws.  If you need custom hardware, please reach out.

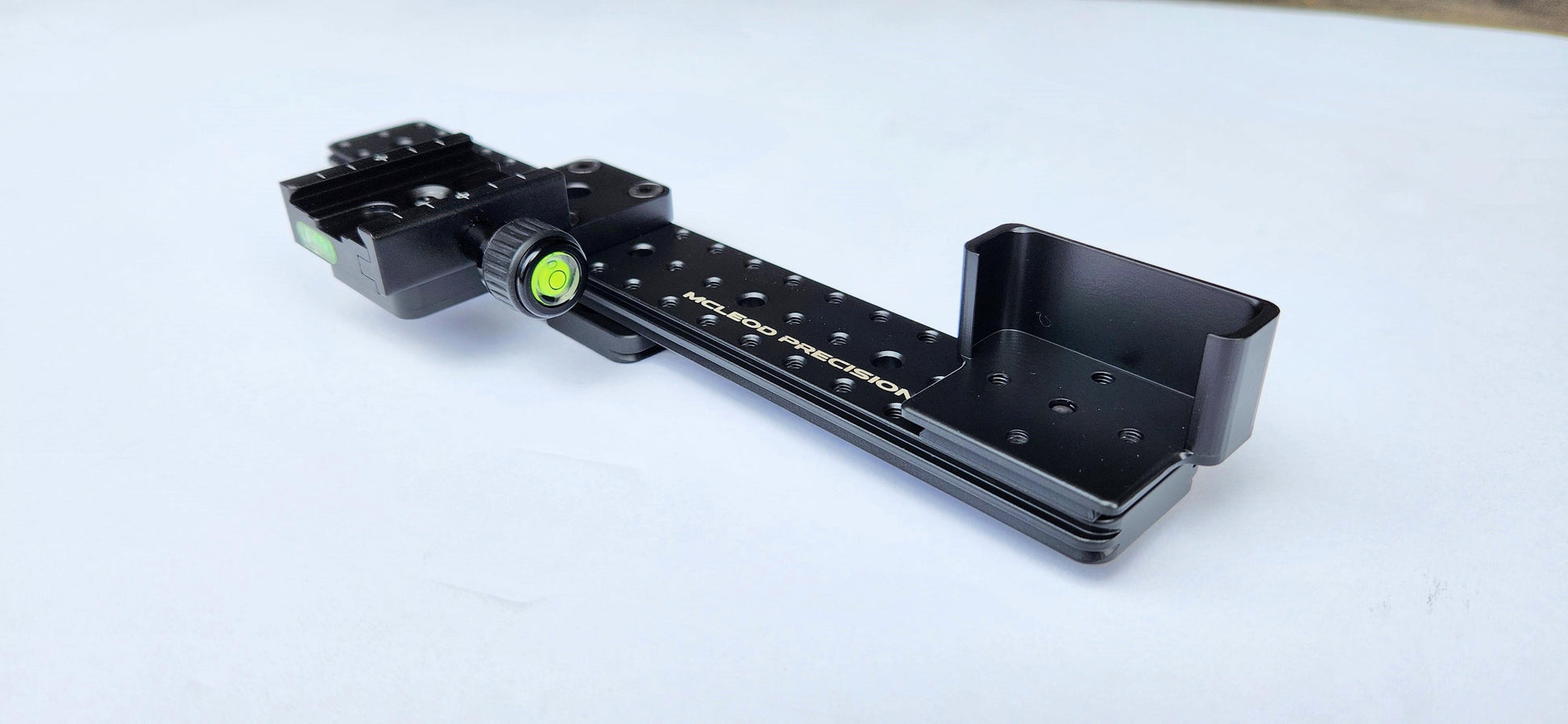

New feature:  Riser Extension - Can be installed inline with the Optics Bridge as a riser for your clamp so the tension knob clears the main bridge.  The knob in the photo is 0.8" DIA for reference.  Standard 1.1" ARMS17 bolt pattern for your clamp.

I have added the ability to option out the Optics Bridge right here on the product page so you have the ability to order the exact configuration you prefer.

Please reach out with any questions kevin@mcleodprecision.com
